Dirt Launch Powersports YXZ Front Shock Mount Gusset

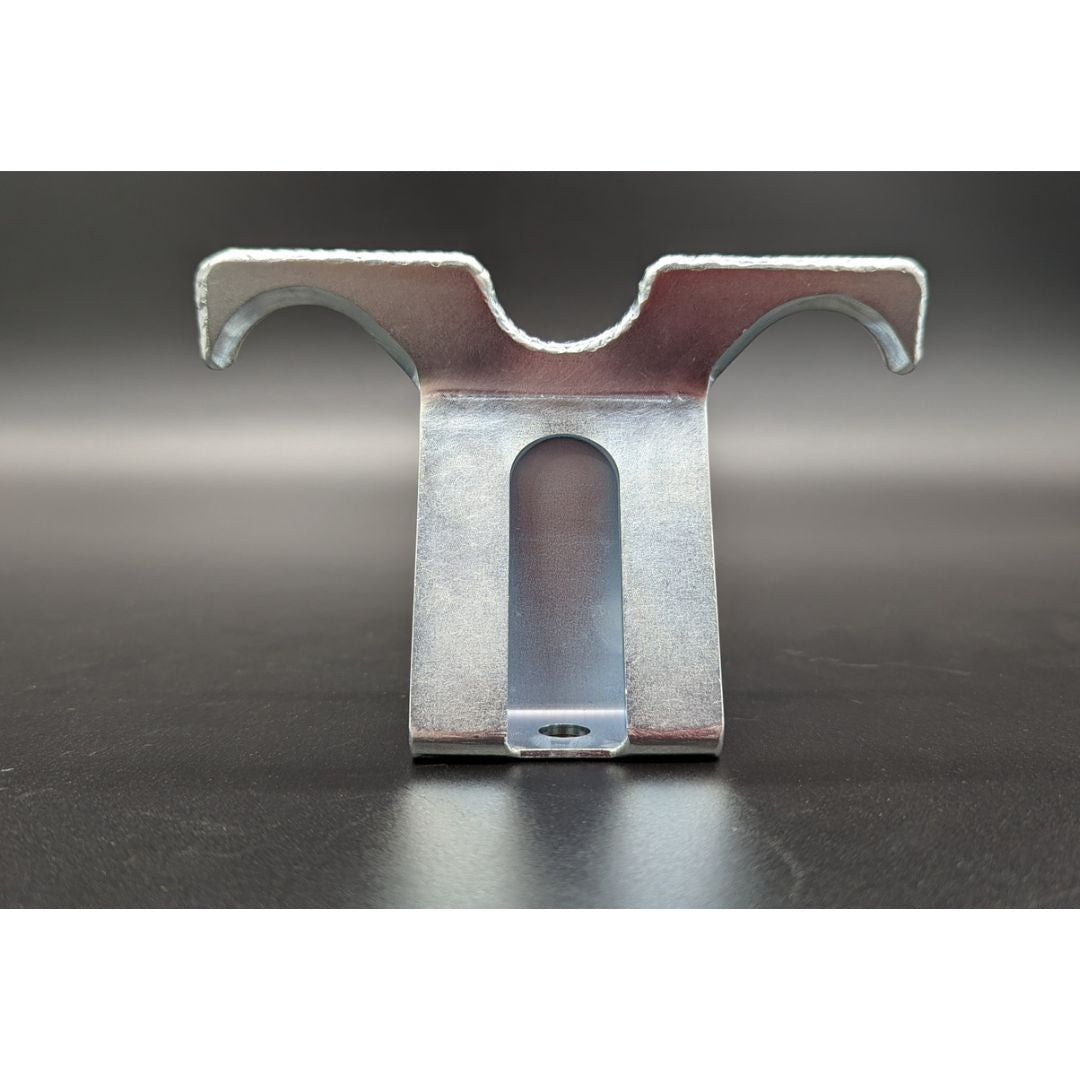

Bolt-On Front Shock Mount Gusset

The Dirt Launch Powersports Bolt-On Front Shock Mount Gusset adds strength to the factory Yamaha YXZ1000R shock tower area, helping prevent frame failures when driving aggressively.

This gusset reinforces the lower section of the front shock mount and can be used on its own or paired with the Dirt Launch Powersports Shock Tower Brace for additional support.

Constructed from thick TIG welded steel and finished with a durable clear zinc plating, this gusset is designed to withstand harsh riding conditions while maintaining a clean, corrosion-resistant finish.

Key Features

• Reinforces the front shock mount area
• Helps prevent frame failures when riding aggressively
• Can be installed alone or with the DLP Shock Tower Brace
• Thick TIG welded steel construction
• Clear zinc plated for durability and corrosion resistance
• Installs from the bottom of the frame tubes
• All installation hardware included
• Made in the USA

Optional Bolt Upgrade

Upgrade the factory upper and lower shock mounting bolts by selecting the stronger bolt upgrade option. These upgraded bolts provide additional strength for demanding driving conditions.

Vehicle Fitment

Yamaha YXZ1000R

Installation Instructions

1. Remove the small hood plastic.
2. Remove the plastic panel covering the shock tower.
3. Install the gusset by sliding the long end up through the frame from the bottom with the flat side facing forward.
4. Secure the gusset using the supplied nut and bolt. Apply Loctite or an equivalent thread locker.
5. Note: Minor adjustment to the gusset may be required due to factory chassis differences.
6. Bolt Upgrade Option (if selected): Replace the OEM upper and lower shock mounting bolts with the upgraded bolts while reusing the factory nuts.
