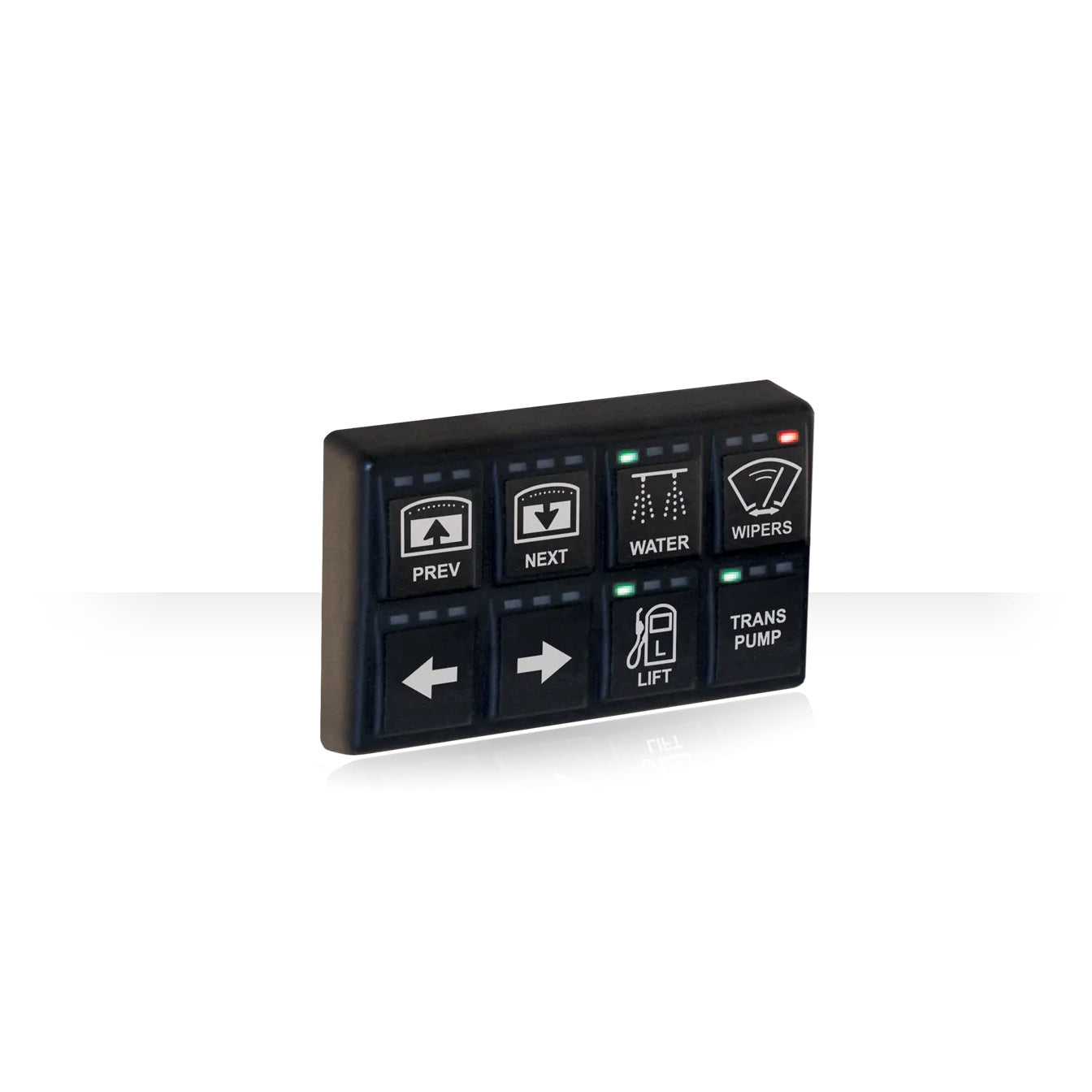

MoTeC's multi-button backlit CAN keypads give you a switching solution that you can customise and connect to any MoTeC PDM. The buttons can be used as inputs to control the PDM and other devices in the vehicle. The three LED lights along the top of each button can show the state of those devices.

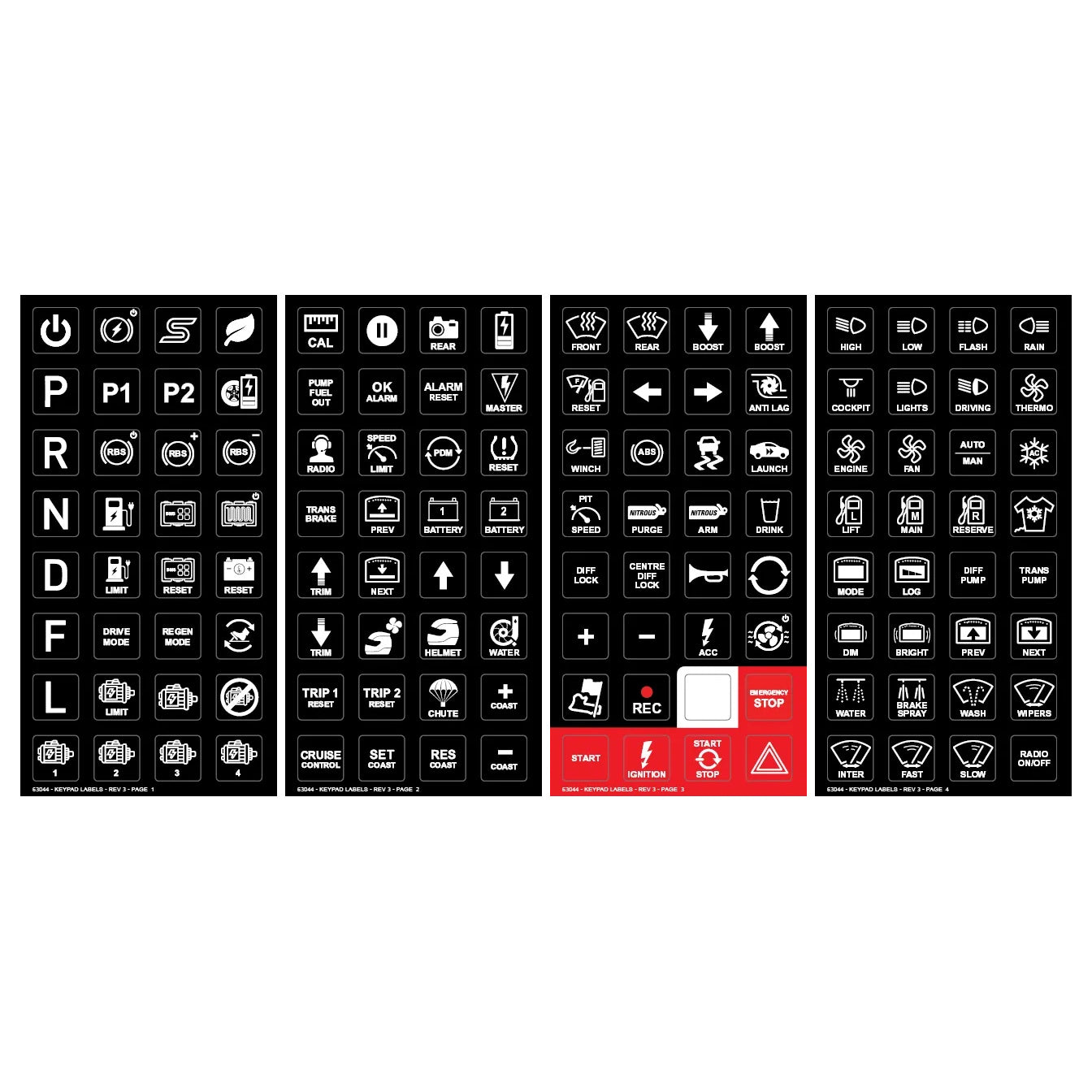

Part 41401: 4 x 2 Button CAN Keypad (8 buttons; includes labels x 3 sheets). Replacement labels: part 63044.
Features
- Small, lightweight and compact package
- Rugged design: vibration and impact resistant for extreme environments
- Dust and water resistant, sealed to IP67
- Dimmable LED indicators above each button for real-time feedback
- Backlit buttons
Specifications
- Configuration: all done in PDM Manager (CAN addressing, function, backlight brightness, status LEDs)
- Communications: single CAN bus
- Up to 4 keypads per CAN bus, with up to 15 keys each (factory pre-configuration required for multiple keypads)
- Status LEDs: green, orange and red
- Power: 8 to 32 V DC, 0.2 A maximum, reverse-battery and short-circuit protection
- Operating temperature: -40 to 85 Β°C
- Connector: 4-pin Deutsch DT (mating connector #68064)
- Size/weight: 104.7 x 62.82 x 15.52 mm, 105 g
Download data sheet (PDF)
