MoTeC C1812 12" Color Display Logger
- Regular price $7,380.00
-
-%
12-inch wide-format color display logger that works like the C187, with a live video window. See full details below.
Couldn't load pickup availability
Orders are typically processed within 1β3 business days and ship from Green Bay, WI.
Vendor: MoTeC
Type: Display Logger
Sku: MOT-C1812-USB
Secure payment
Guarantee safe checkout

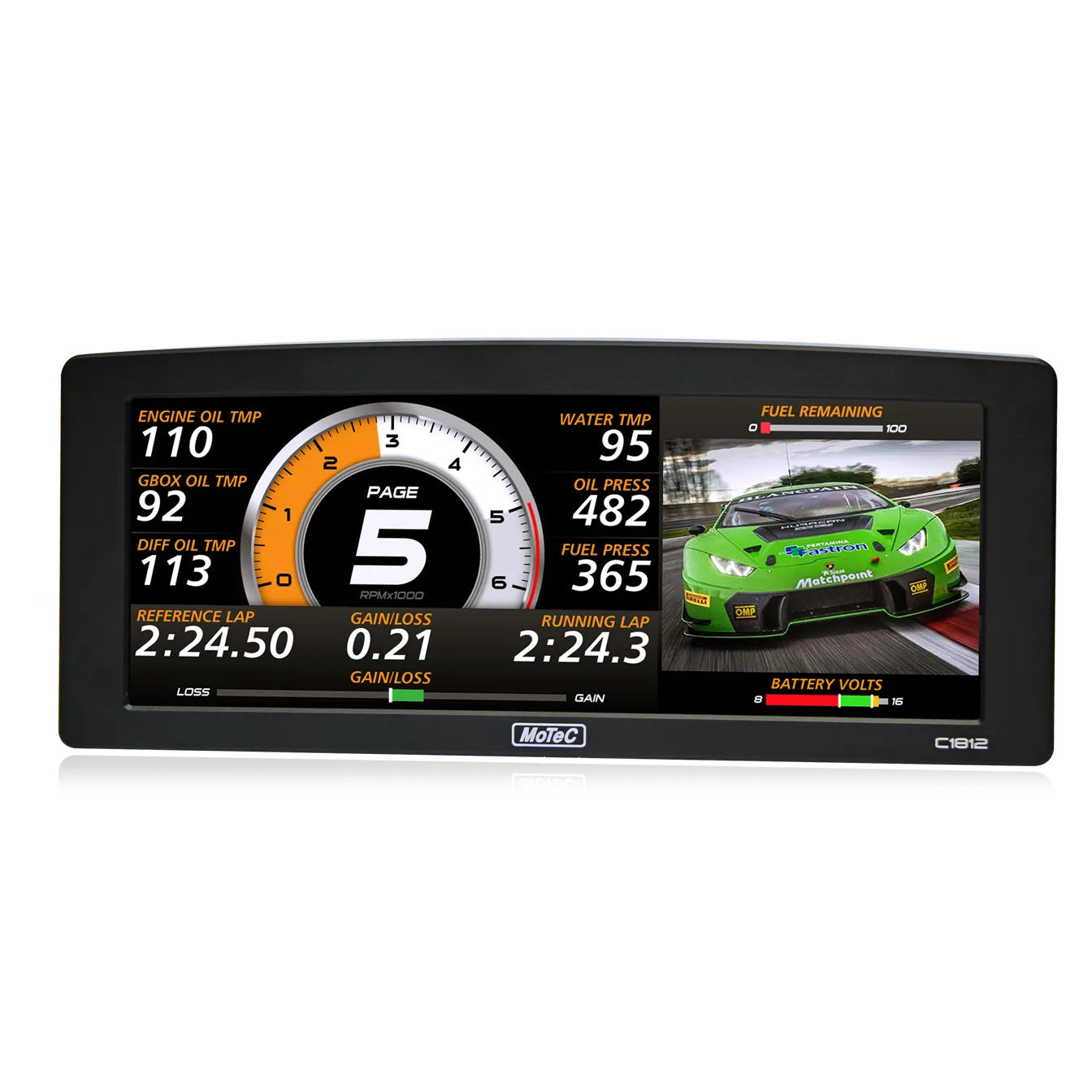

MoTeC C1812 12" Color Display Logger
$7,380.00
The MoTeC C1812 works exactly like the C187, but with a 12-inch (310 mm) wide-format 1280 x 480 color screen. The only other difference is that it has no shift/warning LED array across the top. Fixed layouts include a live video window that switches between 3 cameras, and it can replace the factory cluster in modern vehicles.
Key specs (same as C187)
- I/O: 10 analog voltage (20 with I/O upgrade), 4 analog temp (8 with upgrade), 4 digital, 2 switch, 4 speed and 3 composite video inputs, plus 6 low-side outputs (1 A)
- Logging: 250 MB internal as standard, up to 1000 samples/s. The USB Logging upgrade adds USB and raises internal memory to 500 MB
- 4 CAN, 2 RS232, VIM/SVIM expander support, tell-tales, diagnostic logging, PID control, GPS lap timing, T2 telemetry ready, IP67 housing, 79-pin Autosport connector
Options
Field-enabled upgrades (logging, I/O, Advanced Functions, Pro Analysis, Display Creator, T2 Telemetry and more) are sold as the separate add-on product MoTeC C185/C187/C1812 Upgrades.
The C1812 shares the C187 user manual.
Download data sheet (PDF) β C187/C1812 user manual
Dirt Launch Powersports is a full MoTeC dealer. Contact us for package or tuning support.
