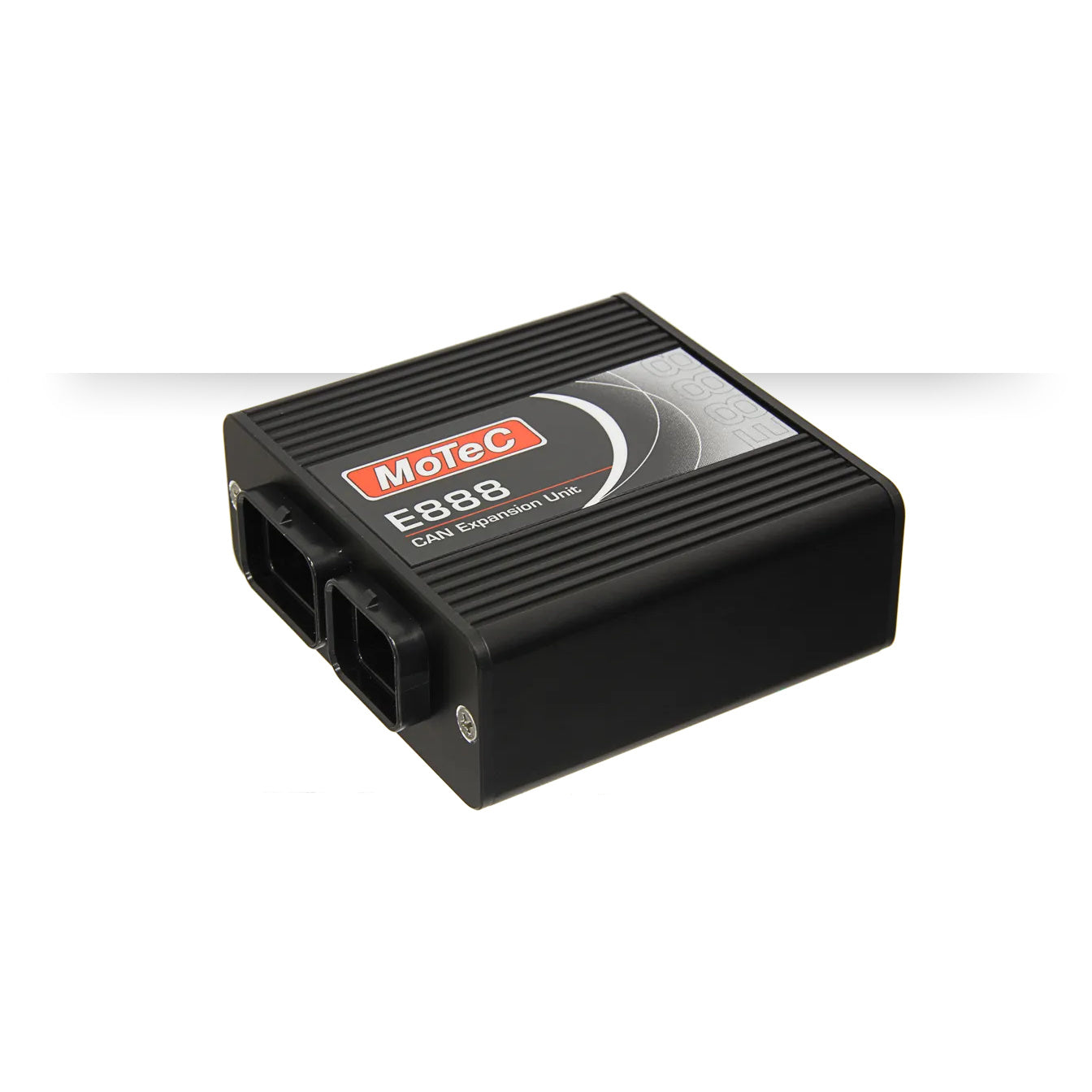

MoTeC E888 I/O Expander (14007)
- Regular price $1,105.00
-
-%
CAN I/O expander adding inputs, outputs and 8 thermocouple inputs to MoTeC ECUs and loggers. See full details below.
Couldn't load pickup availability
Orders are typically processed within 1β3 business days and ship from Green Bay, WI.
Vendor: MoTeC
Type: Expander
Sku: MOT-14007
Secure payment
Guarantee safe checkout
MoTeC E888 I/O Expander (14007)
$1,105.00
The MoTeC E888 expander adds inputs and outputs to MoTeC ECUs and loggers over CAN, so you can add sensors, custom channels and auxiliary control, including 8 K-type thermocouple inputs (for example for EGTs). It is configured as part of the connected ECU or logger configuration. For higher update rates or resolution, MoTeC recommends the VIM input expander.
Key specs
- Inputs: 8 analog voltage (10-bit, 0β5 V), 8 K-type thermocouple (-200 to 1250 Β°C), 2 cold junction compensation, 4 digital (frequency/switched), 2 switch
- 200 Hz update for all inputs (50 Hz for a second expander)
- Outputs: 8 PWM (4 at 8 Hzβ5 kHz with 255 duty steps, 4 at 1β100 Hz with 20 steps)
- CAN communication to the ECU or logger and to the PC
- 99 x 105 x 40 mm, 310 g, two-part 60-pin waterproof connector with gold contacts
- Compatible with C1 Series display loggers, ACL (up to two), SDL3 (thermocouples only) and M400/M600/M800/M880 (one)
Download user manual (PDF) β E888 / E816
Dirt Launch Powersports is a full MoTeC dealer. Contact us for package or tuning support.
