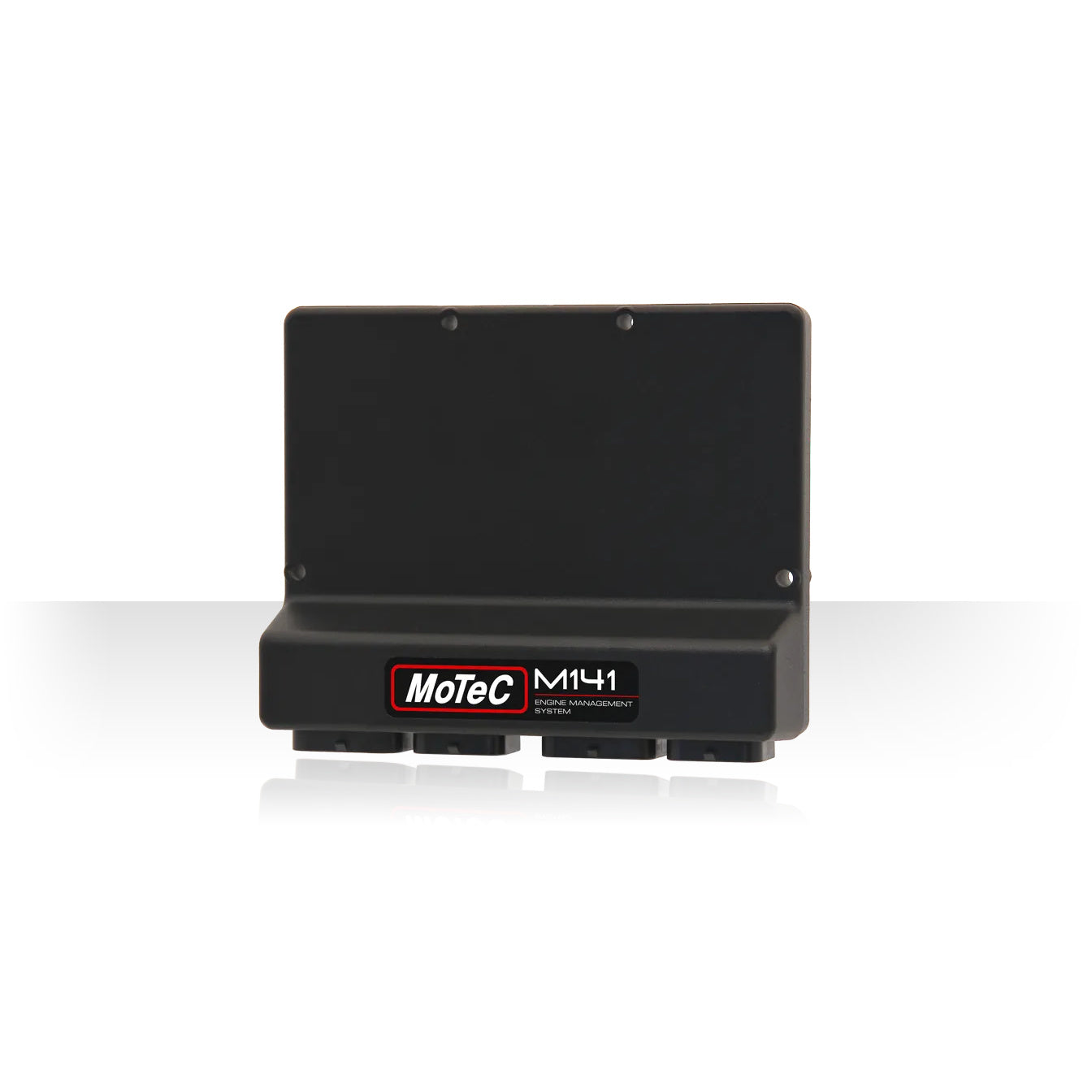

MoTeC M141 ECU
- Regular price $3,995.00
-
-%
Direct injection M1-series ECU with 8 direct-injector drives for high-pressure piezo injectors (up to 188 V). See full details below.
Couldn't load pickup availability
Orders are typically processed within 1β3 business days and ship from Green Bay, WI.
Vendor: MoTeC
Type: ECU
Sku: MOT-M141-RETAIL
Secure payment
Guarantee safe checkout
MoTeC M141 ECU - Hardware only (package sold separately) / Level 1 (included)
$3,995.00
The MoTeC M141 is a direct injection M1-series ECU. It's hardware that runs a licensed M1 firmware package, so the same unit can be set up for anything from a basic engine to a fully featured race program.
Key specs
- Injection: 8 direct-injector drivers plus 6 low-side injector outputs
- Injector type: high-pressure piezo direct injectors (up to 188 V, 20 A peak / 10 A hold)
- Ignition: 8 low-side ignition outputs
- 10 half-bridge outputs (DBW, cam control, PWM)
- Inputs: 17 analog voltage, 6 analog temp, 12 universal digital, 4 digital, 4 knock
- 3 CAN buses, Ethernet for tuning and fast log download
- Case: large 162 x 127.5 x 40.5 mm, about 445 g, connectors: 4 plastic (120 pins)
- Expandable with E816/E888 I/O expanders
Options
Pick a firmware package below, or choose Hardware only if you're buying a vehicle-specific package separately. Choose a logging level in the Logging option: Level 1 is included, Level 2 adds 2 log sets, up to 200 channels and 200 Hz, and Level 3 (includes the required Level 2) adds 8 log sets, up to 2000 channels and 1000 Hz. i2 Pro Analysis and later logging upgrades are on the MoTeC M1 Logging & Analysis Upgrade add-on. M1 ECUs won't run an engine without a firmware package.
Download data sheet (PDF) β M1 ECU Hardware
Dirt Launch Powersports is a full MoTeC dealer. Contact us for package or tuning support.
