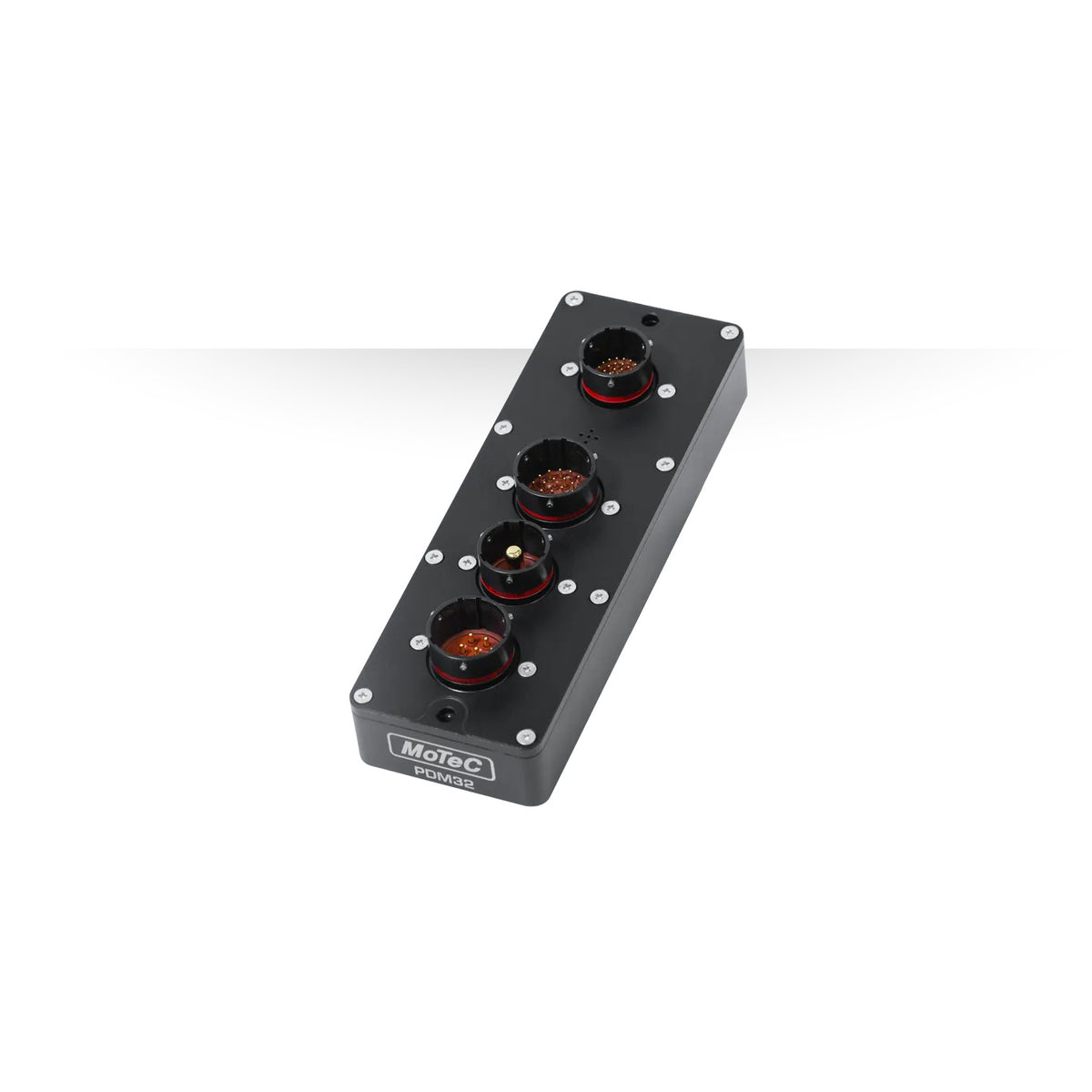

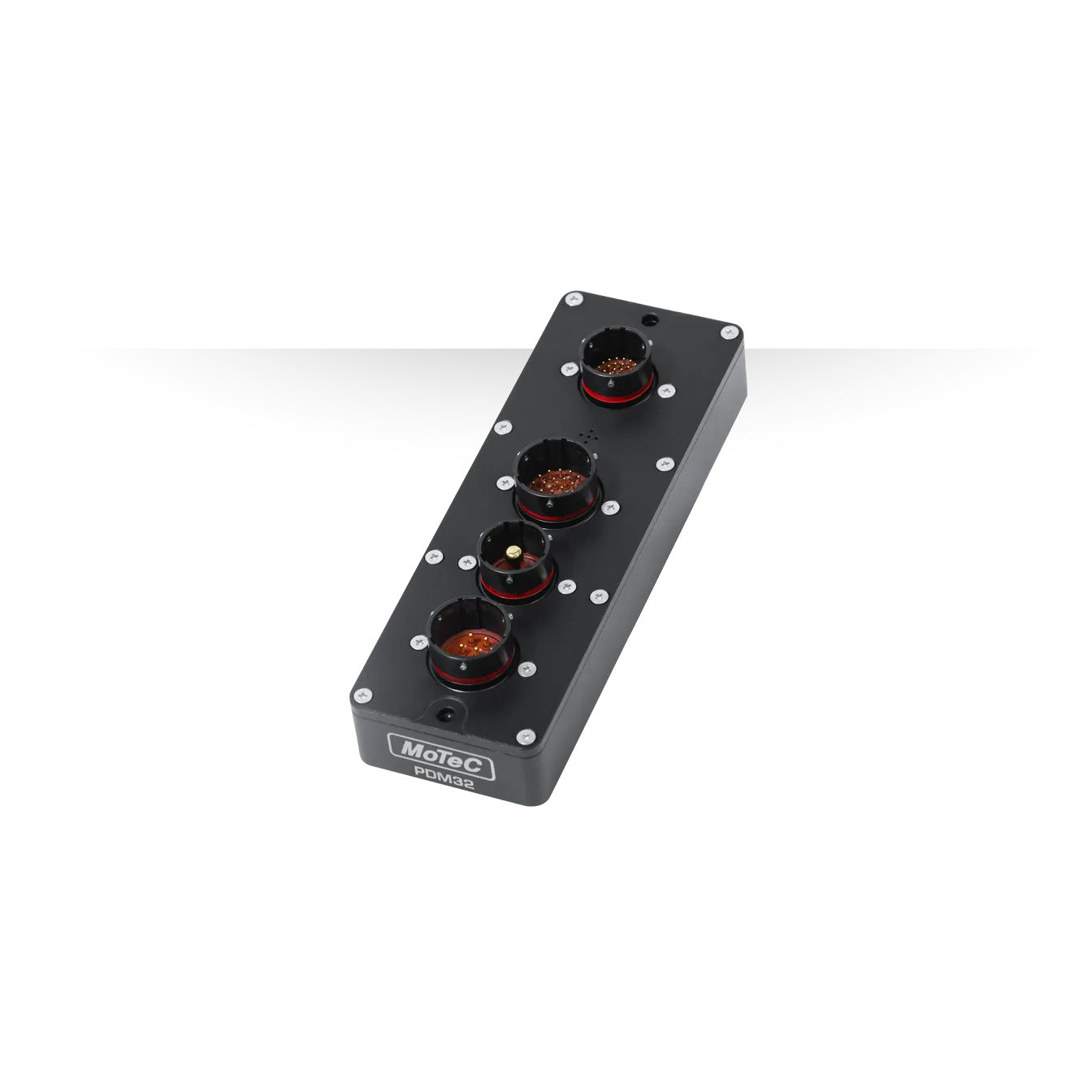

MoTeC PDM32 Power Distribution Module
- Regular price $4,990.00
-
-%
32-output power distribution module that replaces relays, fuses and circuit breakers. See full details below.
Couldn't load pickup availability
Orders are typically processed within 1β3 business days and ship from Green Bay, WI.
Vendor: MoTeC
Type: PDM
Sku: MOT-PDM32
Secure payment
Guarantee safe checkout
MoTeC PDM32 Power Distribution Module
$4,990.00
The MoTeC PDM32 is a 32-output power distribution module. It replaces relays, fuses and circuit breakers with electronically switched, fully protected outputs for pumps, fans, lights, solenoids, ECUs and logging systems. That means simpler wiring, less weight and better reliability.
Key specs
- Outputs: 8 x 20 A (20 A continuous, 115 A transient) and 24 x 8 A (8 A continuous, 60 A transient)
- Every output has over-current, short-circuit and thermal protection, with current limits set in 1 A steps
- 23 switch inputs (0β51 V); outputs can be controlled by switches, CAN messages and up to 200 logic operations
- CAN communication with full diagnostics, so it works with M1 ECUs and MoTeC dashes and loggers
- Autosport connectors; 180 x 60 x 28 mm, about 405 g
- Set up with PDM Manager software through a MoTeC UTC (USB to CAN) adaptor, sold separately
Download PDM user manual (PDF)
Dirt Launch Powersports is a full MoTeC dealer. Contact us for package or tuning support.
