MoTeC SLM Shift Light Module (18120)
- Regular price $475.00
-
-%
Fully programmable 8-LED module for shift lights, warning lights or other indicators. See full details below.
Couldn't load pickup availability
Orders are typically processed within 1β3 business days and ship from Green Bay, WI.
Vendor: MoTeC
Type: Shift Light
Sku: MOT-18120
Secure payment
Guarantee safe checkout

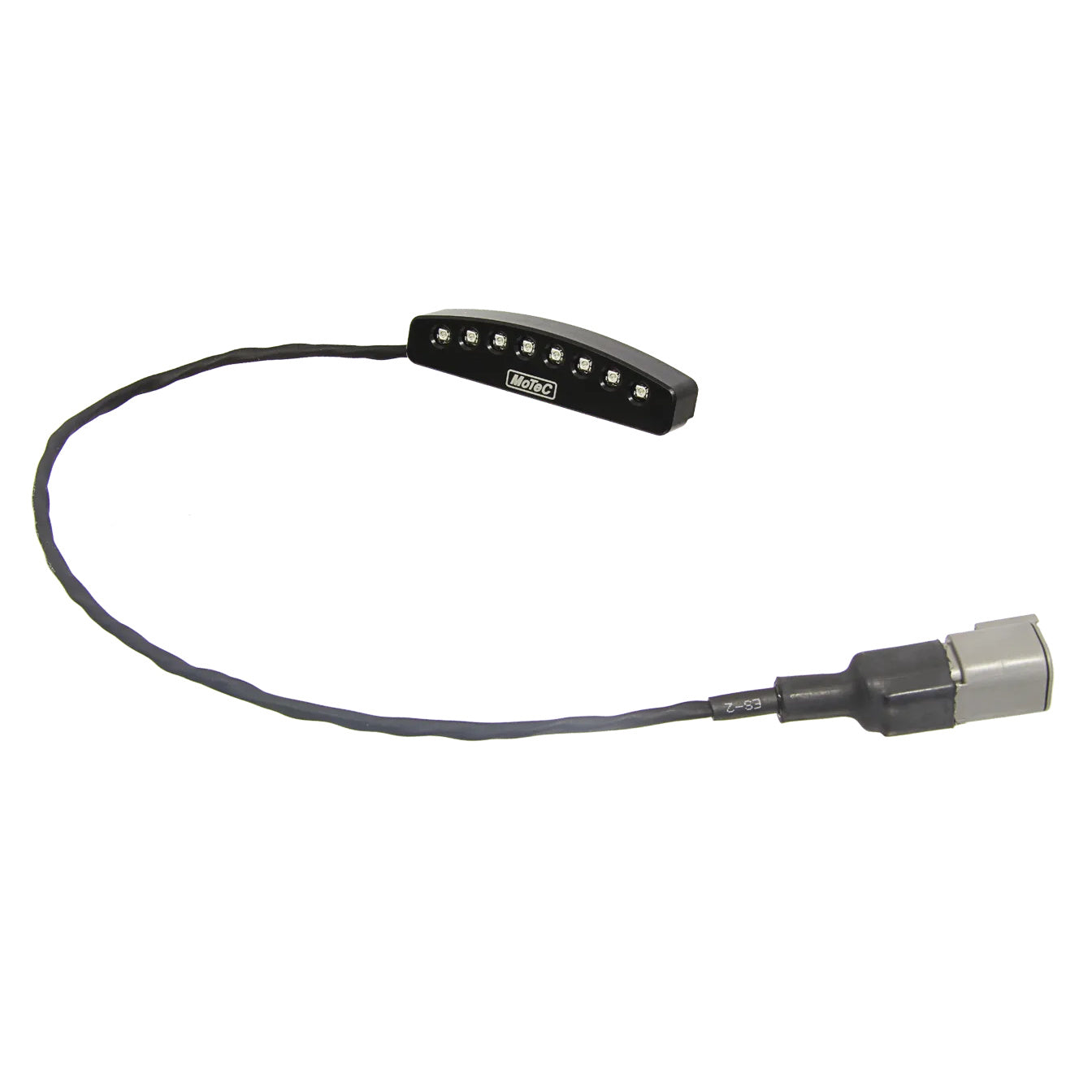

MoTeC SLM Shift Light Module (18120)
$475.00
The MoTeC SLM is a fully programmable 8-LED array for shift lights, warning lights or other indicators. You control the colour, brightness and purpose of each LED independently, and set up patterns and flashing modes (for example upshift/downshift, stop immediately, or pit limiter active), with priorities so a warning can override a shift light. It is configured and controlled through a MoTeC ECU or display/logger.
Key specs
- 8 full colour (RGB) LEDs, user-defined colours and patterns, adjustable brightness
- Connects via CAN (the bus needs at least a 100 Ξ© terminating resistor)
- IP66 sealed for harsh environments
- 81.2 x 19.0 x 16.0 mm; 4-pin DTM connector on a flying lead (mate #68054); base or rear mounting
- Compatible with M1 Series, M400/M600/M800/M880 and M84 ECUs, and all MoTeC displays/loggers
- Set up in the controlling device's software (no standalone software)
Download technical note (PDF) β configuring an SLM / SLM-C
Dirt Launch Powersports is a full MoTeC dealer. Contact us for package or tuning support.
