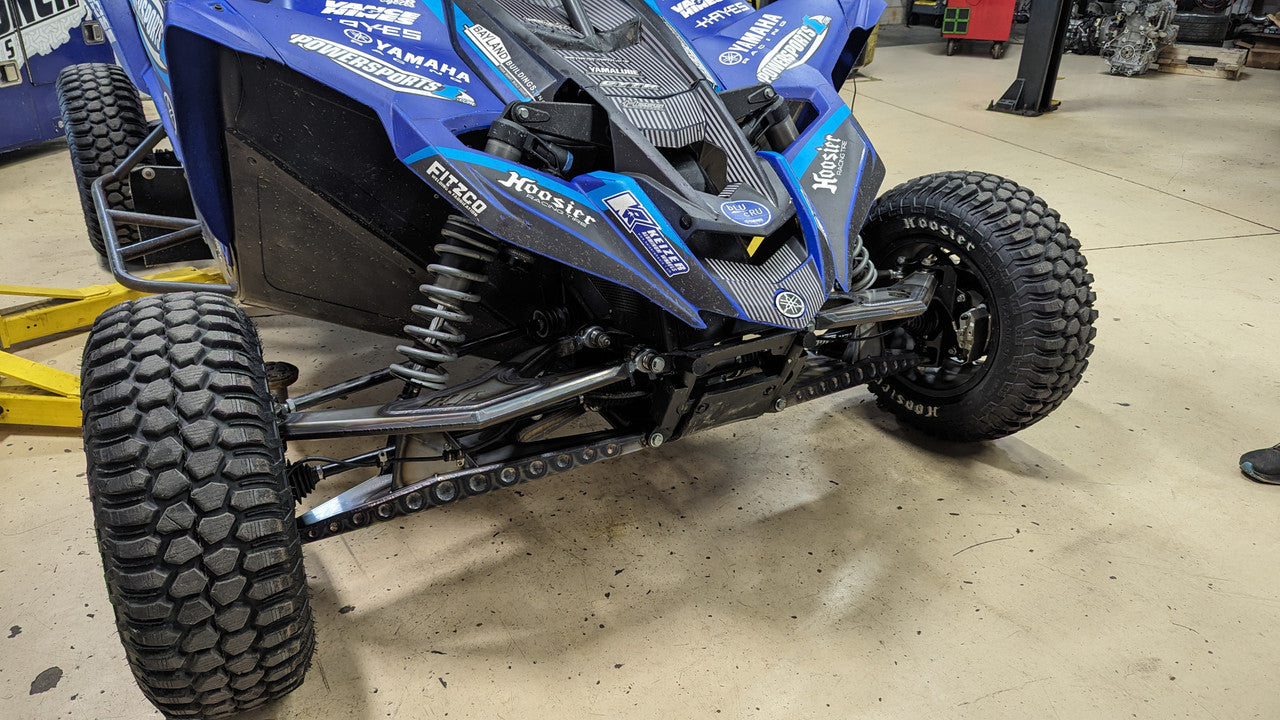

Yamaha YXZ Long Travel Kit

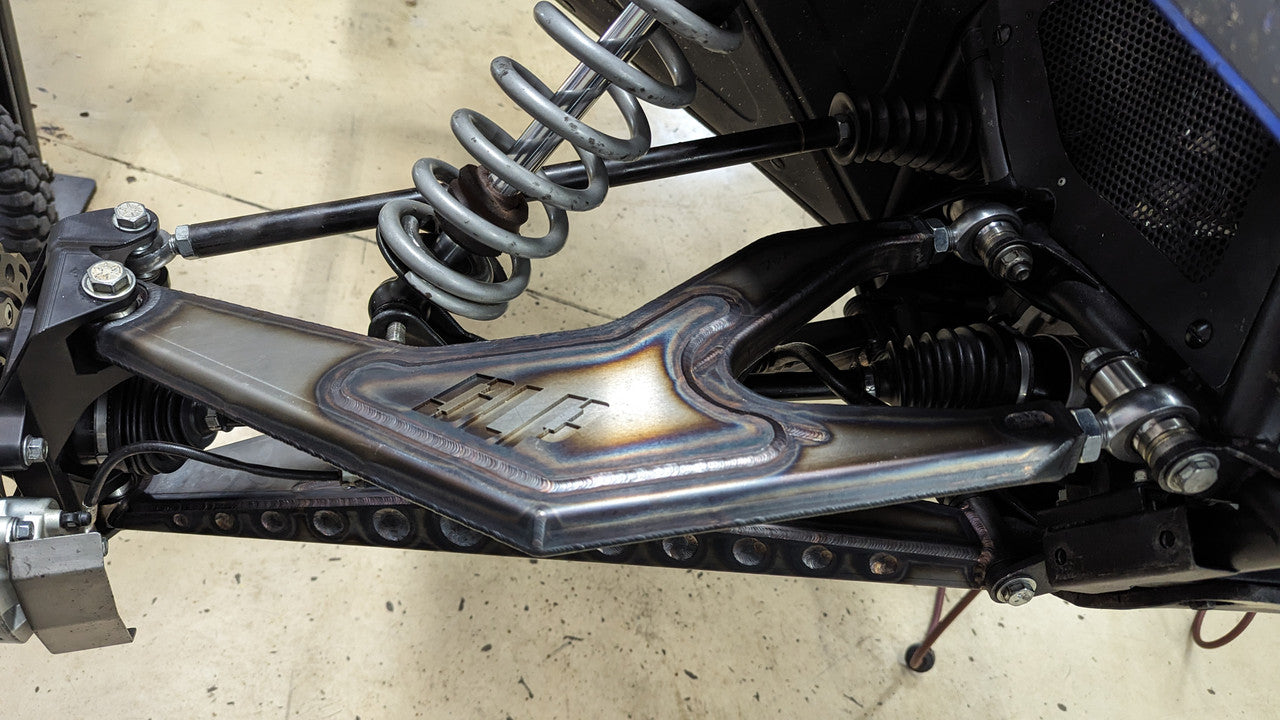

This Dirt Launch Powersports YXZ long travel kit is designed, fabricated, and TIG welded in-house using 4130 chromoly to handle the abuse of racing and open-terrain riding.

Built for high-speed stability and control, this Yamaha YXZ long travel kit increases track width and wheelbase, giving you more confidence in corners, rough terrain, and wide-open environments.

Performance Benefits

• 6 inches wider per side for increased stability
• +4 inch wheelbase for improved control and tracking
• Better cornering and front-end confidence at speed
• Designed for desert, dunes, and aggressive riding

Construction

• 4130 chromoly construction

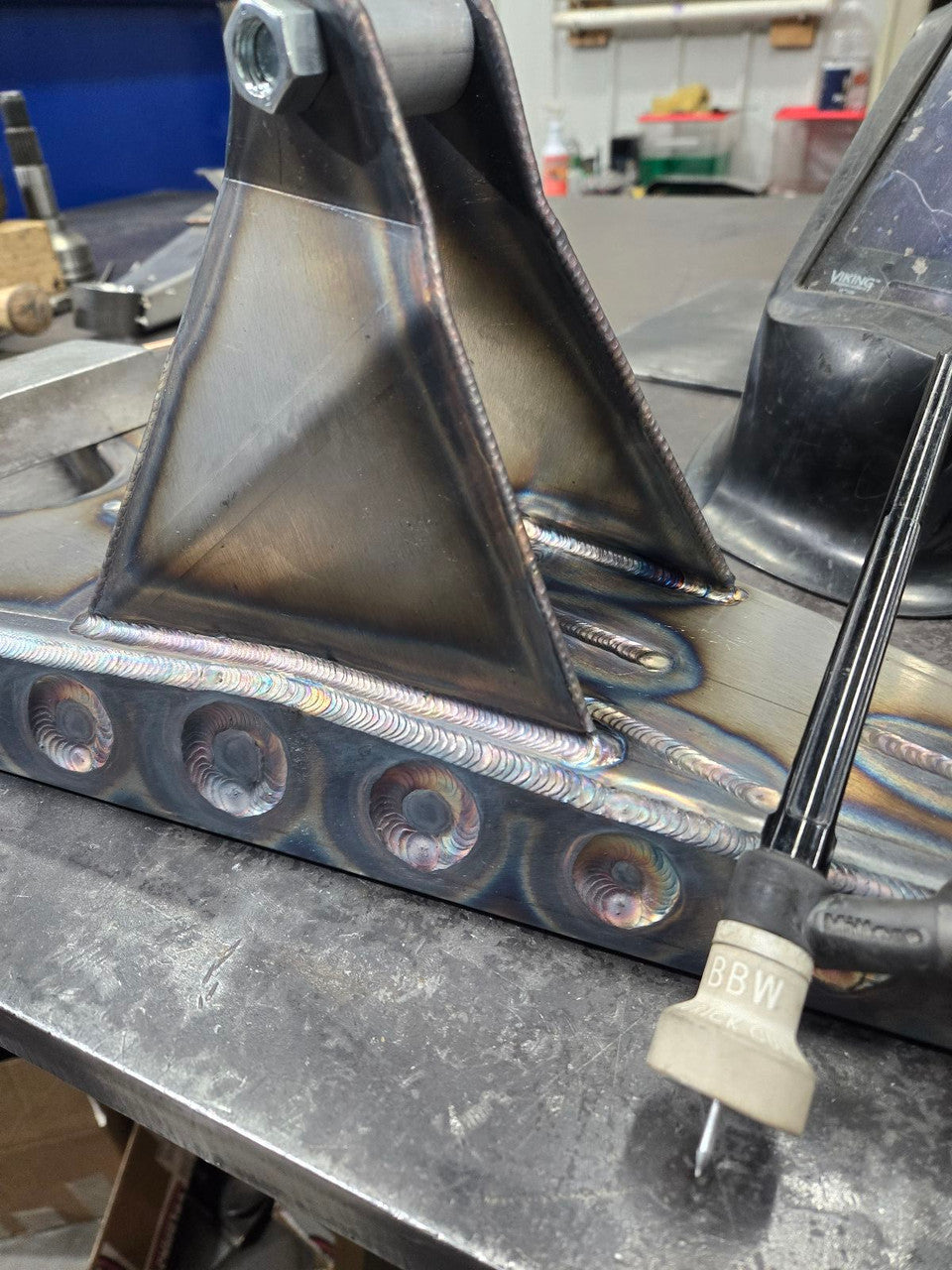

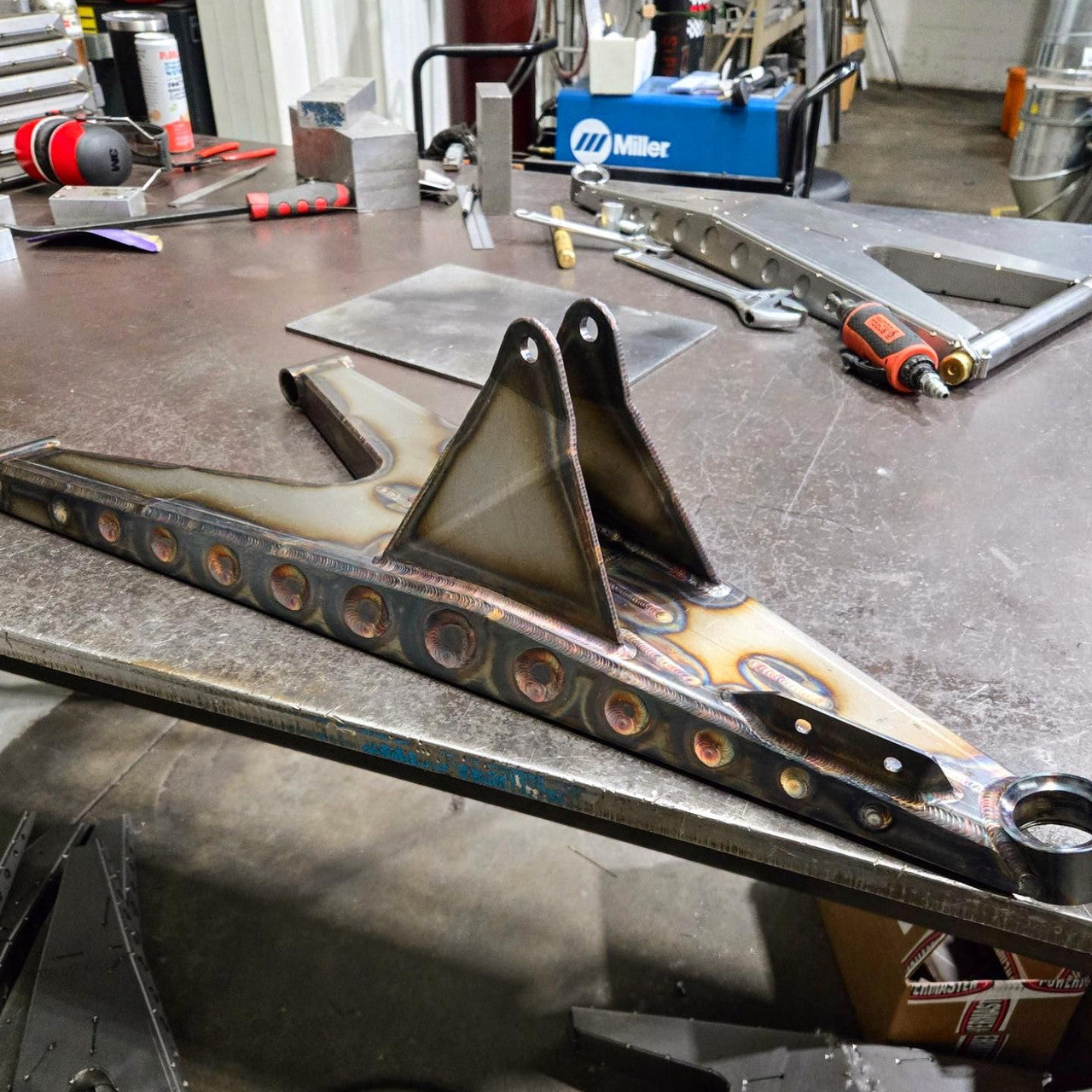

• Fully TIG welded in-house

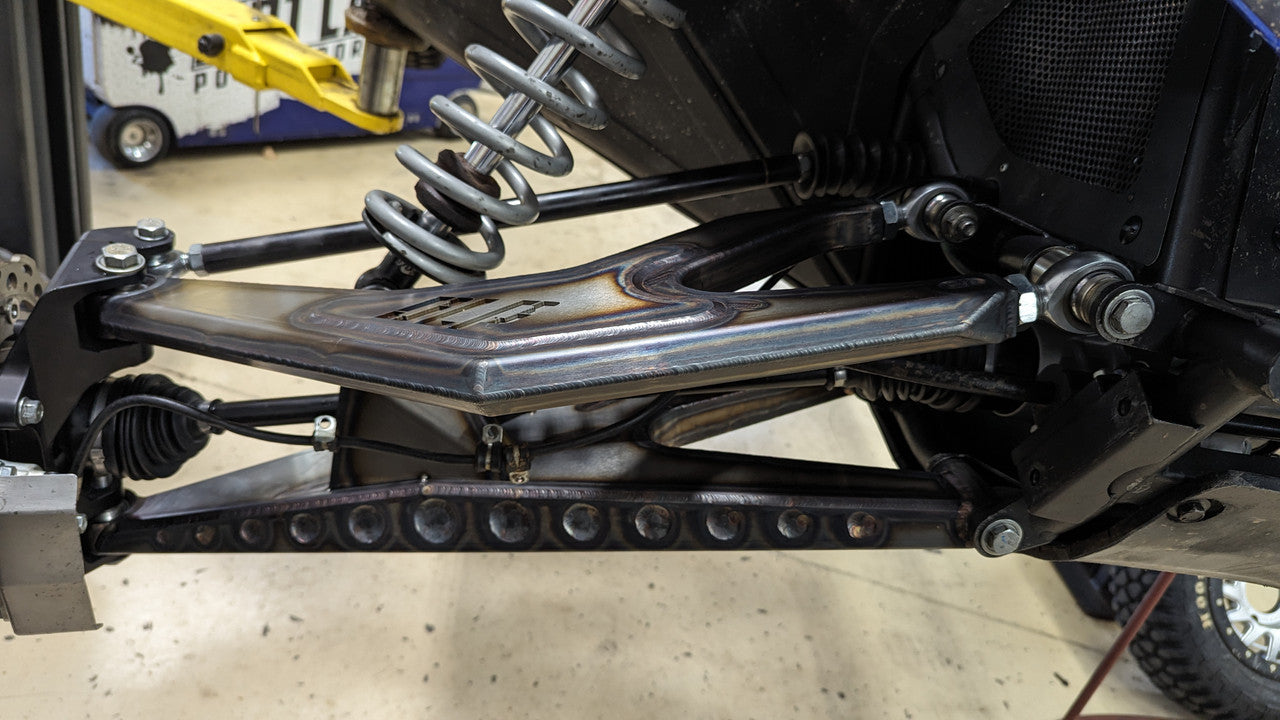

• Monoball front upper and lower knuckle connections
• Fully adjustable camber and caster
• Raw uncoated finish (powder coating available)

What’s Included

• All hardware to install arms to YXZ chassis
• Front ball joint pins for stock knuckle mounting
• Tie rod extensions
• Extended stainless brake lines
• Weld-on tabs for front lower control arm mounts

Optional Upgrades

• Extended length axles
• Front upper shock mount
• Billet front knuckles
• Powder coated finish

Installation Requirements

• Front and rear upper shock mounts (not included)

Shock Compatibility

Stock YXZ shocks can be used, but different springs and valving are recommended for optimal performance.

Build Time

These kits are built to order. Typical lead time is 1–2 weeks. If you need them sooner, please contact us.
